Cigarette lighter positive negative terminals

Thats because the plugs were originally designed to fit in cigarette lighter sockets with the lighter removed. Attach the clips to the unit.

The grounded terminal connects to a grounded source on the vehicle typically a bolt in the chassis.

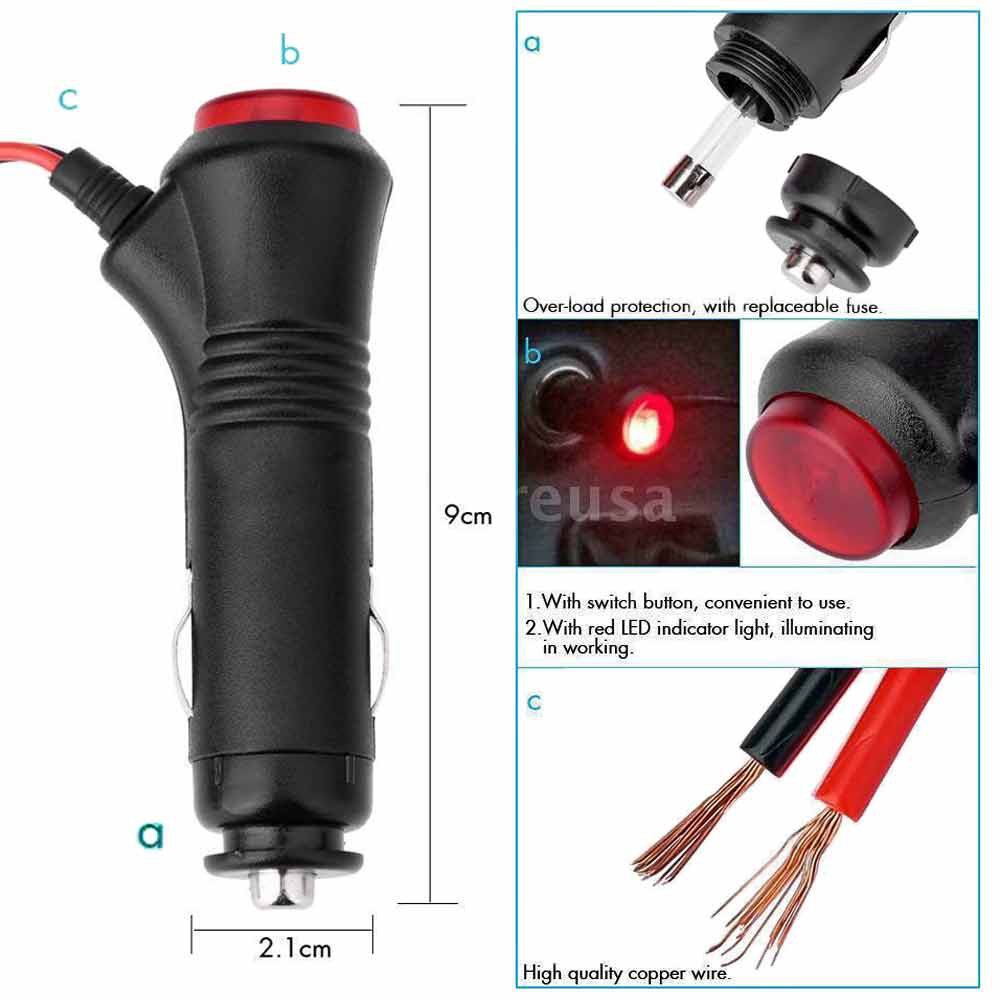

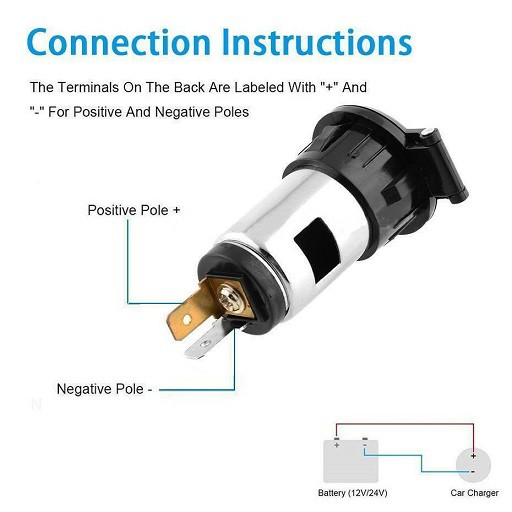

Cigarette lighter positive negative terminals. Thats because the plugs were originally designed to fit in cigarette lighter sockets with the lighter removed. The center pole deep inside the bottom or back of the outlet is the positive pole while the metal shell or metal clips inside the socket on. Which part of a cigarette lighter plug is positive.

The positive pole is deep inside the bottom or back of the outlet while the negative pole is the metal clips on the side of the outlet. Every car that I have seen had center-positive cigarette lighter sockets. All as far as I know modern cars use negative ground systems so the outer negative body is vehicle ground and positive center is battery.

You would expect this polarity to be maintained even with positive ground vehicles made by any sane manufacturer and most. For the 12 volt systems the center contact is the positive terminal and the shell is the negative terminal. How many amps does a cigarette lighter use.

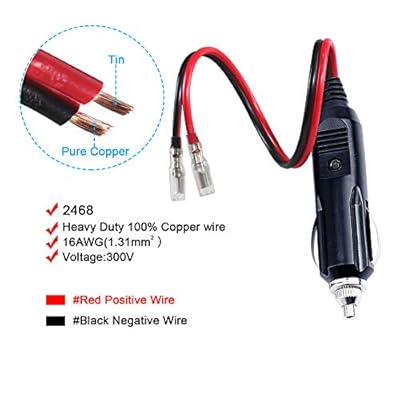

Under normal circumstances a cigarette lighter can be expected to draw roughly 10 amps and cigarette lighter circuits usually have 10 or 15 amp fuses. This standard covers plugs and cord sets that insert into cigarette lighter receptacles. A set of alligator clamps on the opposite end of the female cigarette plug.

End-on carries the positive voltage whereas the can part which is the outer part of the connector carries the negative voltage which is. Which is positive and negative on car. You now have made a pig tail adapter which can be clipped to battery terminals and power anything that plugs into a cigarette lighter socket.

The RED clamp is attached to the POSITIVE battery post and the black clamp to the negative - terminal and it is ready for use. Which terminals are and - on a cigarette lighter plug. I want to charge my phone with my computer and need to know which terminals to connect the yellow and black wires to.

I would assume that the center is positive but you never know. When I say positive I mean where the electrons go into the plug from the 12 on my molex. Thats because the plugs were originally designed to fit in cigarette lighter sockets with the lighter removed.

The center pole deep inside the bottom or back of the outlet is the positive pole while the metal shell or metal clips inside the socket on the sides of the outlet form the negative. You are correct there is no positive and negative side to the fuses per se. There is the positive side and the load side which feeds anything that each fuse supplies with power.

What this mod suggests you do is remove the fuse which normally supplies the cigarette lighter with power all the time. The terminal is positive and the negative electrode is connected to the device. Insert the cigarette lighter into the cars cigarette lighter socket.

Attention please—Our 12V 15A cigarette lighter cable has the use limit with the inverter it can only be used to 120-150 W Power Inverter. Here is how I connected the red wire to the battery. I threaded it through the hood that protects the positive terminal from accidental short circuits.

Then I secured it with the same bolt that holds the battery cable in place. The black wire needs to be connected to the negative terminal of the battery. Plug the red lead into the port labeled with the volt symbol which is V Look at the reading to see if its a positive or negative number.

Once you attach the leads to the wires check the number on the screen of the multimeter. This is the voltage of your wire and can be either positive or negative. For the 12 volt systems the center contact is the positive terminal and the shell is the negative terminal.

Most automobiles connect the negative terminal to the frame of the vehicle negative ground. 12 volt auto connectors are made to comply with a standard by Underwriters Laboratories for safety. UL2089 was developed to cover the requirements for portable.

If you keep the cables connected follow this process. Plug the chargers positive clip onto the positive battery terminal. Then plug the negative clip onto the frame or engine block as far away from the battery as possible.

An adapter plug for a vehicles cigarette lighter socket comprising a sleeve and body insertable into the sleeve the sleeve further comprising a first tube adapted to be coupled to a negative terminal of a vehicle electrical system a first terminal pin disposed within the first tube the first terminal pin adapted to be coupled to a positive terminal of a vehicles electrical system and means for electrically isolating the first terminal. Positive or Negative Japanese Terminal. Positive or Negative Japanese Terminal.

Suitable for small Japanese Positive or Negative battery terminals. In some models the cigarette lighter outlet is not powered when the ignition key is removed and charging is not possible. The sockets and mating plugs are defined in the ANSISAE J563 specification.

For the 12 volt systems the center contact is the positive terminal and the shell is the negative terminal. When you have it in place roll on a second O-ring from the back up to the top. Now screw on the external barrel from the back tight enough that the lighter doesnt wobble in the dash.

But dont grind through the O-ring. Green is negative and goes to the spade on the outer barrel. Black is positive and goes to the center spade.

The only live negative pieces of metal that are still bare are i the threads on the back end of the barrel. A negative terminal is the grounded terminal on a car battery typically marked by a minus - sign. It is usually color-coded black.

The other terminal is positive usually color-coded red or orange and marked with a plus sign. The grounded terminal connects to a grounded source on the vehicle typically a bolt in the chassis. The cigarette lighter plug includes a front housing and a rear housing a positive contact end installed at a front end of the front housing for contacting a positive terminal of a cigarette.

The female cigarette socket making sure that both ends are secure and aligned correctly. For optimal charging power ensure the panel solar cell up is directly facing the sun. Connection to a battery.

Attach the clips to the unit. Connect the red positive clip to the red positive terminal on the battery. Connect the black negative clip - to the black negative terminal - on the.

I dont want to fry anything on the bike but plugging in the connector and turning on the smart charger is obviously way easier than removing the seat disconnecting the negative terminal hooking up charging and then reversing the process. Second question relates to the cigarette lighter power outlet.
