Small outboard tilt and trim

This was for my 40 HP. The Tilt Trim allows boat operators to trim the boat for a smoother drier ride.

He was also going to sell me a Panther brand for 54995.

Small outboard tilt and trim. This one is for the manual tilt small engine folks. Most outboard engines 30 hp and below do not have power tilt and trim. They usually have 5 holes into which a pin can be inserted varying the angle of the engine relative to the transom of the boat.

They also have a bracket that can be flipped down to prop the engine up at around a 45 degree angle for operating in shallow water at slow speeds. Small Outboard TiltTrim I dont think you would want to use the Minn Kota model as a tilttrim I think it was a tilt only unit and probably would not survive the thrust from even a 25 hp I have been using a CMC tilt and trim on my 25I believe they are about 400 for. Rugged Trim Tilt for pontoons and other boats the compact Trim Tilt Model 55 conveniently matches outboards from 15hp to 55hp weighing up to 250 pounds.

Perfectly designed for pontoons fishing or pleasure boats the Trim Tilt provides an additional five degrees of negative tuck for improved hole shot. Adapts to clamp on or bolt-through outboards. Best aftermarket small motor trim N tilt.

Twin City Outboard was willing to sell me a CMC brand of power tilt and trim for 49995 US. This was for my 40 HP. Two stroke outboard up to 135 HP.

He said it would work for all small outboards. He was also going to sell me a Panther brand for 54995. Manufacturer of Power Tilt Trim - Power Tilt Trim For Small Outboard Engines Integrated Power Tilt Trim Three Cylinder Power Tilt Trim and Double Action Power Tilt Trim offered by Showa India Private Limited Faridabad Haryana.

Outboard Trims and Tilts. For fishers and anglers who enjoy using small watercraft to explore different inlets and estuaries with the hopes of landing that prize catch using an outboard trim and tilt motor is an easy way to motorize your small skiff. Trim and tilt outboard motors are nimble quick and easy to install.

Many models offer superior. Lift your heavy motor up and out of the water or tilt it easily with special tilter. Utilizes leverage by hooking onto the back of the motor shroud.

Marine trim and tilt units are the most recognizable and dependable in todays marine marketplace. Not all auxiliary trolling motors come with trim and tilt built-in. Thats how come when you trim up the boat may start pulling to the left.

And when you trim down the boat will pull to the right. This is one of the more important things to understand about tilt and trim. Smaller boats with outboard motors will have a manual trim control.

Larger boats will likely have a power tilt option. The minus or In control retracts the actuator arm causing the outboard to tilt toward the transom. If the motor is not actuated check the wiring and reground the assembly.

If the arm is only partially extended replace the DC battery with an increased-wattage unit. The Tilt Trim allows boat operators to trim the boat for a smoother drier ride. When fully trimmed in it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times.

After reaching plane the boat can be optimized for best running angle by trimming the tilt up to its maximum of 65 degrees. CMC power tilt and trim units are external devices that allow manual tilt outboards to be electronically tilted. The waterproof marine electric hydraulic system is rated at 7800lbs.

Of thrust and can be used in Fresh or saltwater. These units work great on small outboards that do not offer a. Most large outboards above 100 horsepower feature electrically actuated hydraulic tilt and trim most small outboard motors of 40 hp and below have manual TT.

In-between the standard is manual but hydraulic systems are an available option. Powerful and reliable motor provides 20 trim or 90 tilt. Available with or without dash-mount trim gauge.

6 setback increases boat stability and improves prop performance. The mount is pre-drilled for standard BIA bolt patterns 12-78 top holes on center 9-78 bottom holes on center and is rated for up to 130hp outboards. Trim Tilt Units and Jack Plates sold to all areas of Australia New Zealand the Pacific Islands.

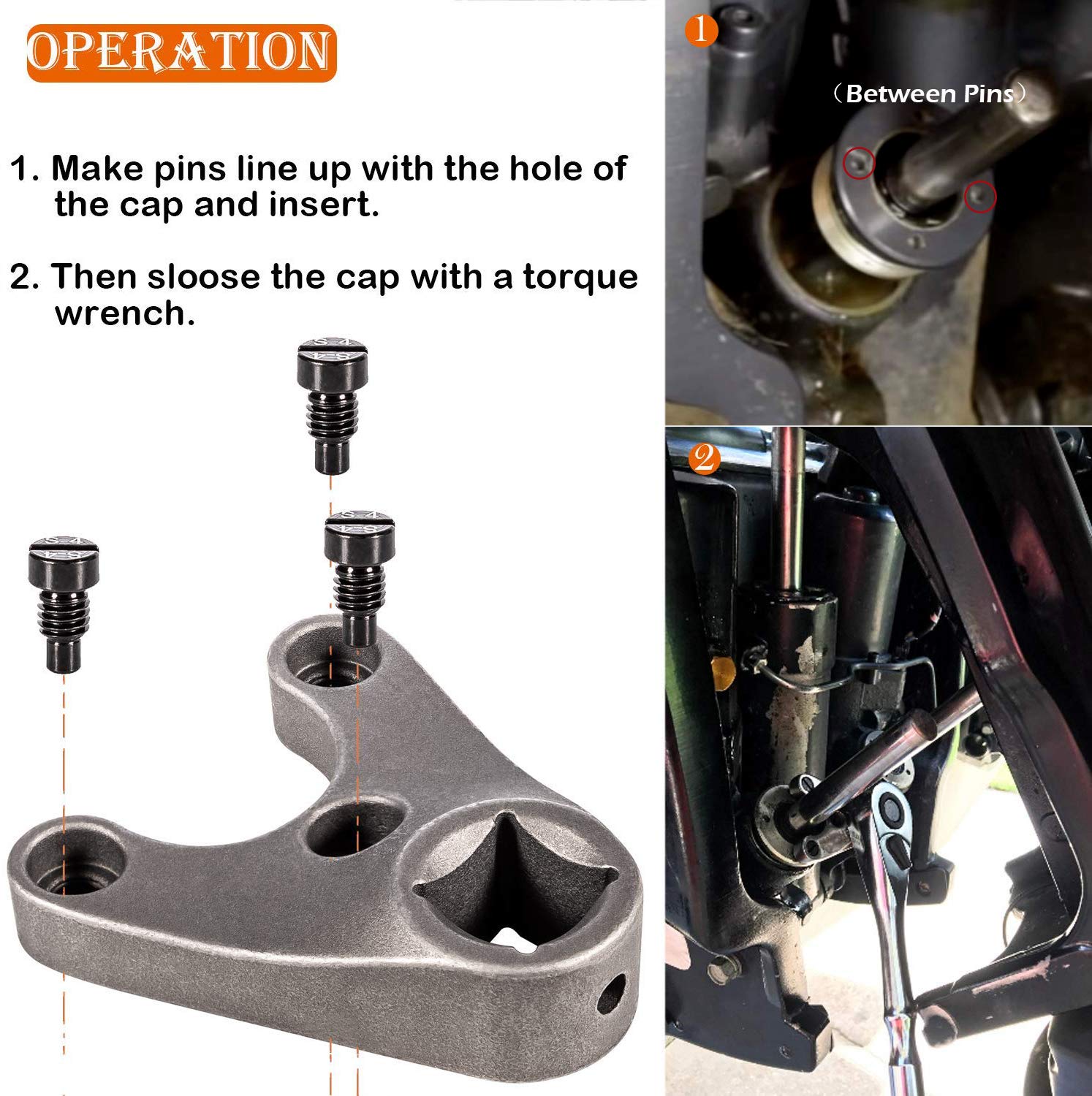

Items are held in stock so fast delivery is assured. 0409 910 808 – Email. Outboard Trim Tilt Pin Wrench Cap Removal Tool Replacement for Showa Yamaha Suzuki Johnson Honda Evinrude Hydraulic Steering System AMT0009 YB-06548 35mm x.

This is a Tohatsu 20 hp outboard boat motor. This engine has the following features. 15 Short Shaft Remtoe 4-stroke Power Tilt and Trim Electric Start Charging System and controls.

This engine is complete and ready to run. We have serviced the carburetor and it is ready to run. The Difference Between Tilt Trim.

Yes tilt and trim are both in the same component on the engine but they have different functions. The tilting portion of the operation has to do more with trailering or getting the outboard out of the water. Especially for long term storage while the boat is in the water.

For fishers and anglers who enjoy using small watercraft to explore different inlets and estuaries with the hopes of landing that prize catch using an outboard trim and tilt motor is an easy way to motorize your small skiff. 2001 yamaha 90 2 cycle service manual. Outboard motor manual tilt and lock in this video i go through the manual tilt.

Tilt function is useful for the protection of the outboard engine. Moreover the hull and outboard engine are prevented being damaged by Shock absorbing function. The trim motor is the motor that lifts the motor outboard or the outdriveinboardoutboard up and down.

How does the trim-and-tilt feature work on an outboard motor. The trim-and-tilt feature uses an electro-hydraulic mechanism to raise or lower the motor slowly. In general most trim-and-tilt features move the propeller end of the outboard motor about 90 degrees.

There are a number of different outboard trim-and-tilt units that are based on the size and type of outboard motor. Electric hydraulic tilt and trim gives you power tilt and trim better boat handling more speed lower fuel consumption and no more back strain. Rated for 35 HP and.

The PT-35 Tilt Trim is a lighter more compact Tilt and Trim unit manufactured for 35 horsepower motors and smaller Down to 2 HP. This unit is 11-12 inches wide and weighs only 24 lbs. It utilizes the same hydraulic actuator as the PT-130 and gives you all the same benefits.

Tilt and trim can be used for small and medium size outboards. Also power tilts and trims for large outboard and stern drive boats. It can be easily adjustable from top to bottom.

Using this unit the boater can then move the engine up and down as well as tilting it in and out with the power tilt and trim. Outboard wont trim up. Use a short piece of wire as a jumper and jump it across the small red and small blue wires on the UP solenoid.

MOTOR SHOULD RUN but may just click. IF IT JUST CLICKS then jump across the large red and large blue wires.
